Product Description

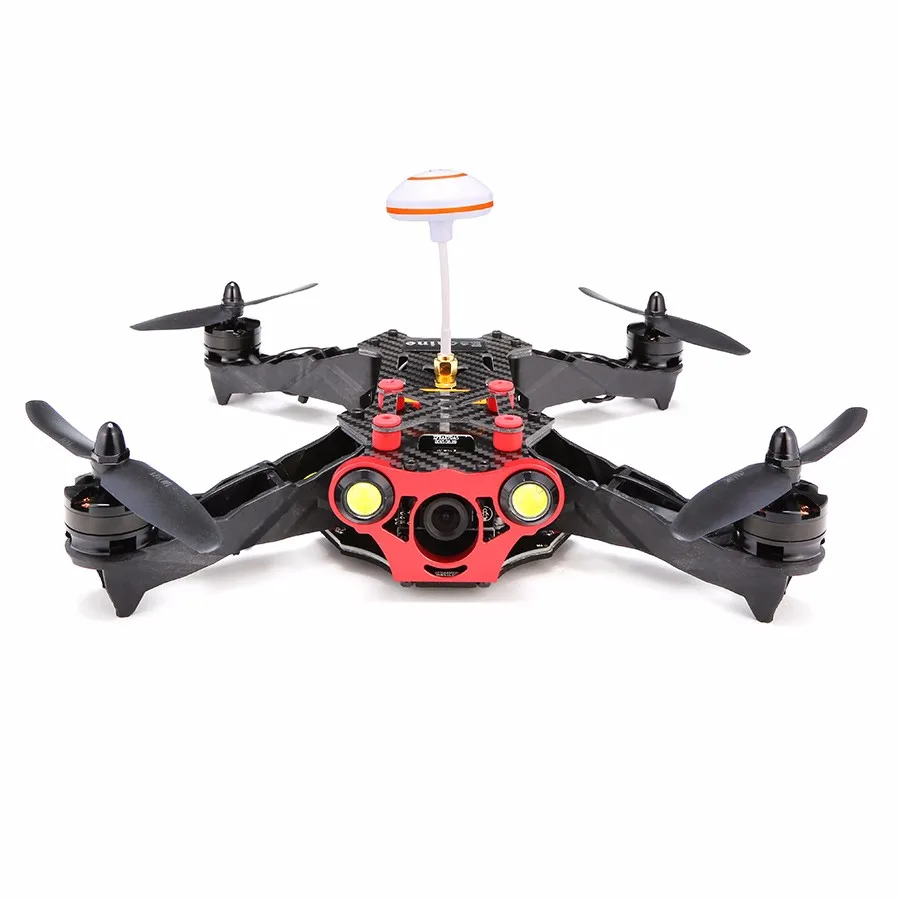

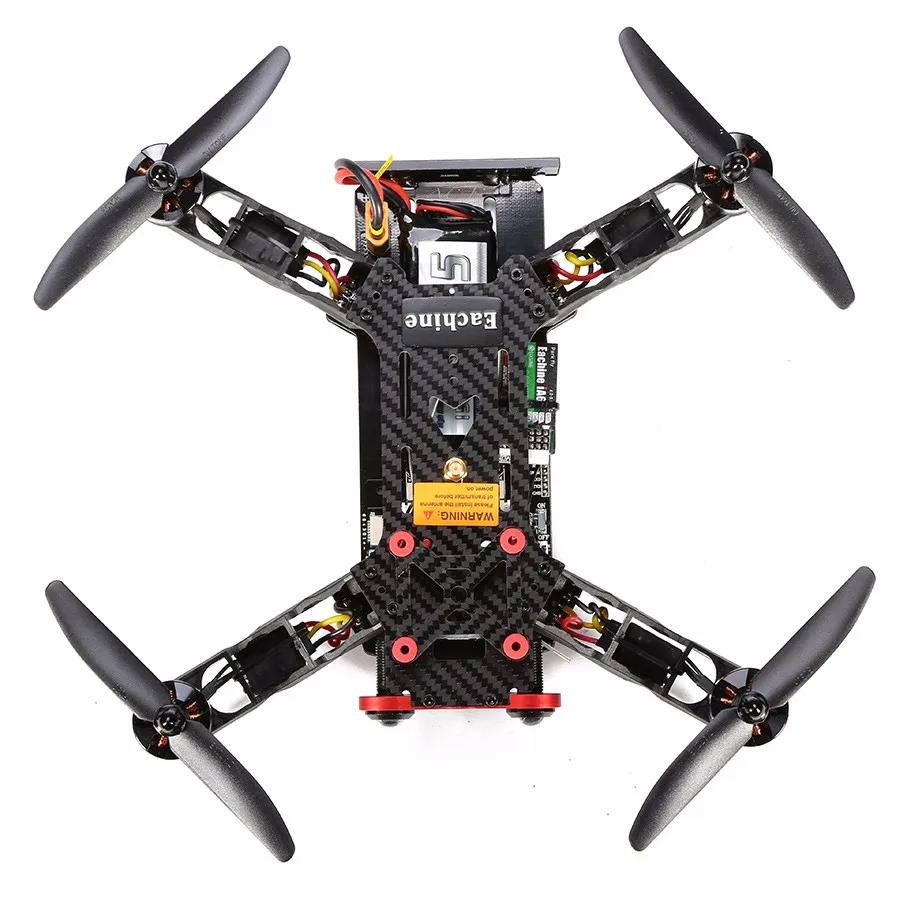

Racer 250 FPV Drone
Specifications:
- Main wing length: 140mm
- Size: 220x233x50
- Weight: 400g (without battery)
- Headlight LED: white 3W
- Camera: 1000TVL, support for HD night, camera angle is adjustable
- Brushless motor: 2204 2300KV
- Brushless ESC: Simonk 12A

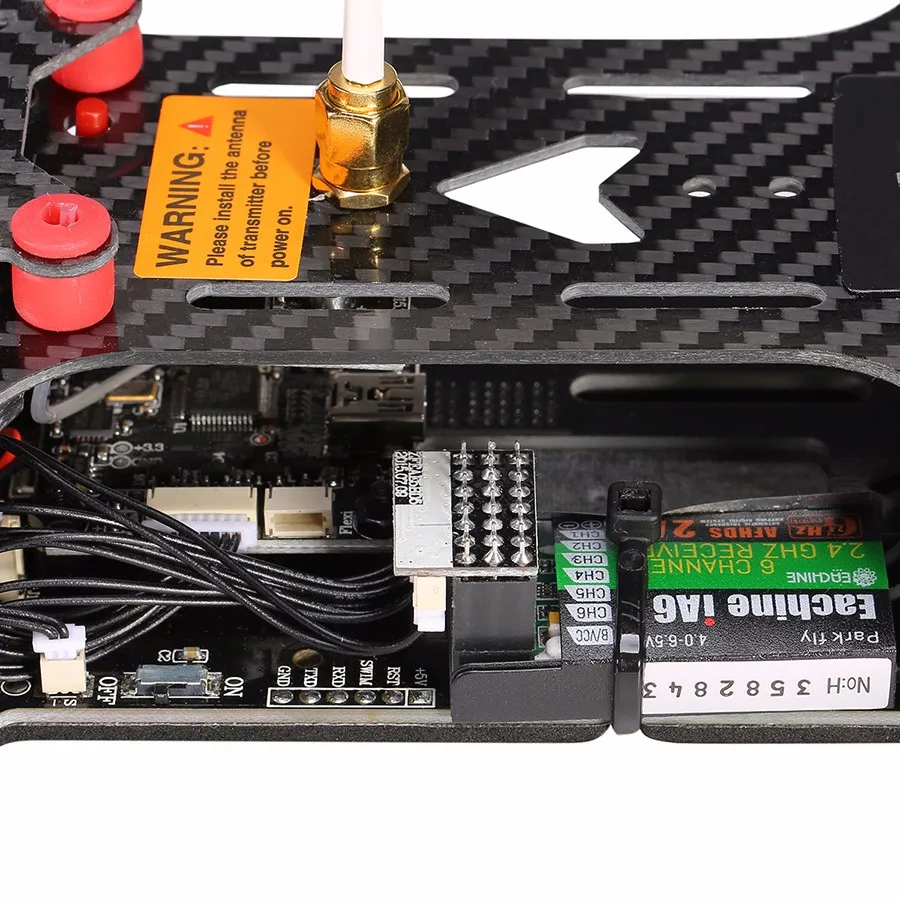

- Flight controller: CC3D with Flexi port and Main port
- Receiver: Eachine I6 2.4G 6CH Receiver (included)
- Remote control: Eachine I6 2.4G 6 channel (included)
- Lipo battery: 11.1V 1500mAh 25C 3S
- Transmitter: 600mw 5.8G 32CH built in OSD
- Flight time: 10-14 mins
- Working temperature:  -10°C to +40°C

Features:
- Real-time image transmission, automatic search frequency, snowflakes screen
- Bulit-in OSD (the flight volatge of battery, flight time, current channel).
- Carbon fiber, super anti-fall structure.
- Easy disassembly quick change propeller device.
- Ultrafast flight speed easily manipulated.
- Long distance remote control high sensitivity.
- Enjoy ignoring crossing barriers.

Eachine I6 2.4G Transmitter
Specifications::
- Channels: 6 Channels
- RF Range: 2.40-2.48GHz
- Bandwidth: 500KHz
- Band: 142
- RF Power: Less Than 20dBm
- Sensitivity: 1024
- Low Voltage Warning: less than 4.2V
- DSC Port: PS2;Output: PPM
- Charger Port: No
- ANT length: 26mm*2(dual antenna)
- Weight: 392g
- Power: 6V 1.5AA*4
- Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
- Size: 174x89x190mm
- On-line update: yes
- Model Memories: 20

Features
- Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.

- This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

- Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

- This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

Eachine I6 2.4G 6 channel Receiver
Specifications:
- Channels: 6 Channels
- RF Range: 2.40-2.48GHz
- Bandwidth: 500KHz
- Band: 142
- RF power:less than 20dBm
- RF.receiver sensitivity:-105dBm
- ANT length: 26mm
- Weight:6.4g
- Power:4.0-6.5V
- Size: 40.4x21.1x7.35mm
- i-BUS port: NO
- Data Acquisition port: NO

7 Inch 5.8G 32CH Monitor
Specifications:
- Screen type: TFT LCD Screen/long life, LED backlight
-Resolution: 800*480
- Brightness: 500cd/m2
- Visual angle: 140/120°(level/vertical)
- Wireless receiving: 5.8G 32CH -90dBmreceive sensitivity
- Size: 173mm x 113mm x 20mm
- Power: DC 12V 3S LIPO
- Working temperature: -10℃~ + 65 ℃

Features
- Bulit-in 5.8GHZ diversity wireless receiving to receive the best signal.
- A key Auto signal search.
-Use 5.8GHz ISM frequency band to avoid the interference of 2.4GHZ frequency band.
- Included an antenna.

Package included:
- 1 x Eachine Racer 250 FPV Drone
- 1 x Eachine I6 2.4G Transmitter
- 1 x Eachine I6 2.4G Receiver
- 1 x 7 inch 5.8G 32CH monitor
- 1 x monitor holder
- 1 x CC3D Flight controller with Flexi port and Main port
- 4 x Simonk 12A ESC
- 2 x CW 2204 2300KV motor
- 2 x CCW 2204 2300KV motor
- 2 x black CW propeller
- 2 x black CCW propeller
- 2 x white CW propeller
- 2 x white CCW propeller
- 1 x mushroom antenna
- 1 x B3AC balance charger
- 2 x 11.1V 1500mAh 25C 3S battery
- 1 x tail light LED colorized
- 2 x headlight LED white 3W
- 1 x 1000TVL camera
- 1 x 600MW 5.8G 32CH transmitter built in OSD
- 1 x remote control strap

3b06fbd6-30a3-b54d-b795-6f283b2f54421451384096_17.jpg1451384097_17.jpg1451384098_17.jpg1451384099_17.jpg1451384100_17.jpg


Packaging Details
  • Unit Type: piece
  • Package Weight: 0.8kg (1.76lb.)
  • Package Size: 12cm x 23cm x 15cm (4.72in x 9.06in x 5.91in)
